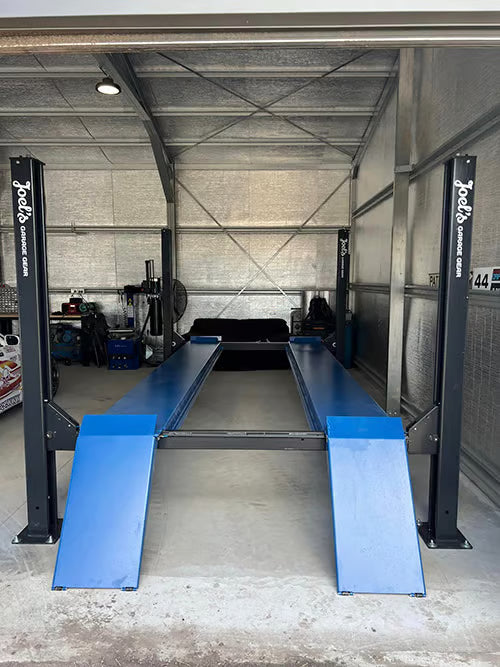

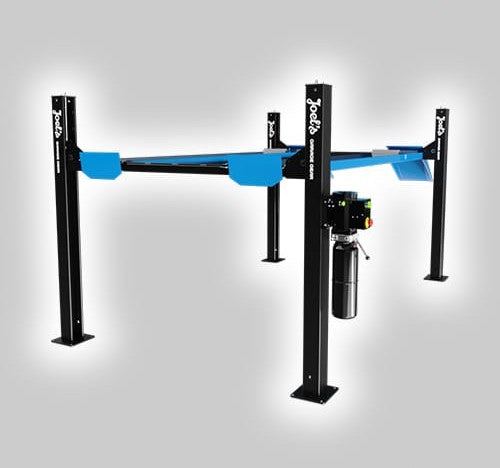

3T 4 Post Narrow Width Car Hoist - Premium Garage Lift Australia

3T 4 Post Narrow Width Car Hoist - Premium Garage Lift Australia

$4,249.00

Notify me when back in stock

3-ton 4-post car hoist designed for garages with limited space. Stable drive-on platform, hydraulic lifting system and durable steel construction. Suitable for servicing, detailing or vehicle storage with expert advice available.



4-Post Standard Car Hoist

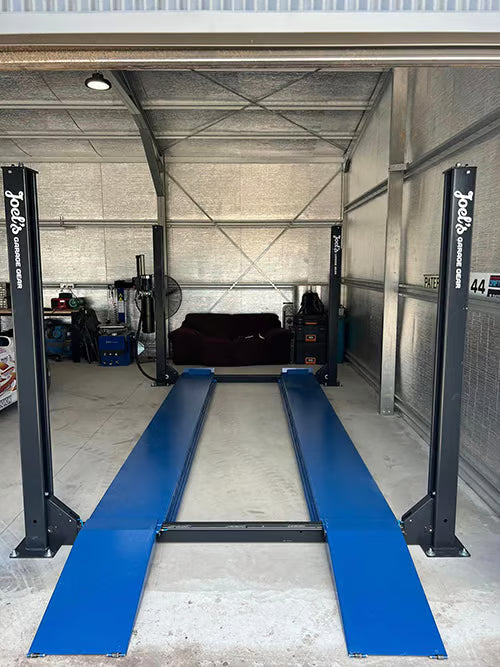

A 4-post hoist is one of the most versatile upgrades you can add to a garage or workshop, offering stable lifting, simple vehicle positioning, and excellent under-vehicle access. This standard 4-post model is designed for reliability, ease of use, and long-term durability - making it ideal for servicing, storage, detailing, or general mechanical work. The drive-on runway design allows quick vehicle positioning while the heavy-duty steel structure ensures consistent lifting performance. Whether you’re upgrading a professional workshop or building a premium home garage, it provides a practical balance of capacity, stability, and usability.

Key Features

  • 4000kg Safe Working Load – Ideal for passenger vehicles, SUVs, and light commercial applications.
  • Stable 4-Post Drive-On Design – Provides secure lifting and makes positioning vehicles quick and straightforward.

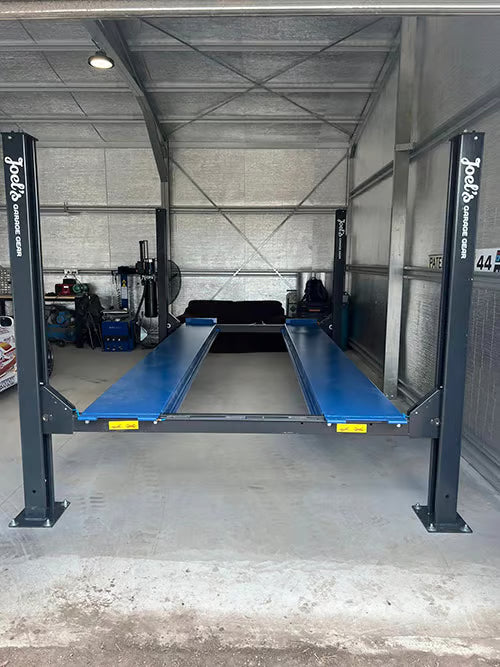

  • 1.85m Lifting Height – Suitable for servicing, inspections, or vehicle storage.
  • Adjustable Runway Width – Two track positions allow flexibility for different vehicle sizes.
  • Durable Powder-Coated Finish – Helps protect against wear and corrosion

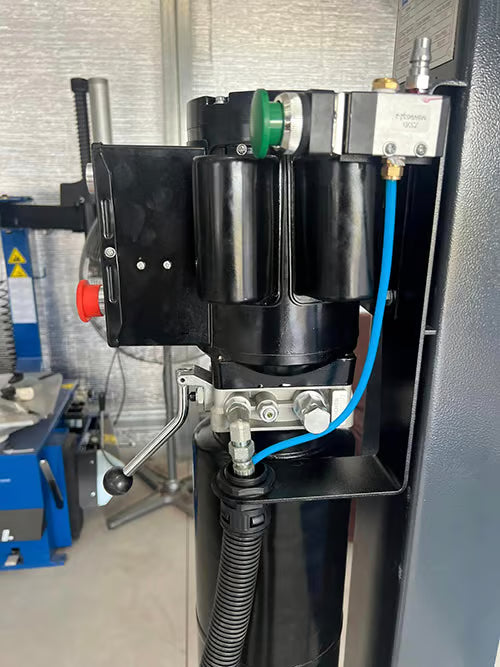

  • Pneumatic 4-Point Safety Lock Release System

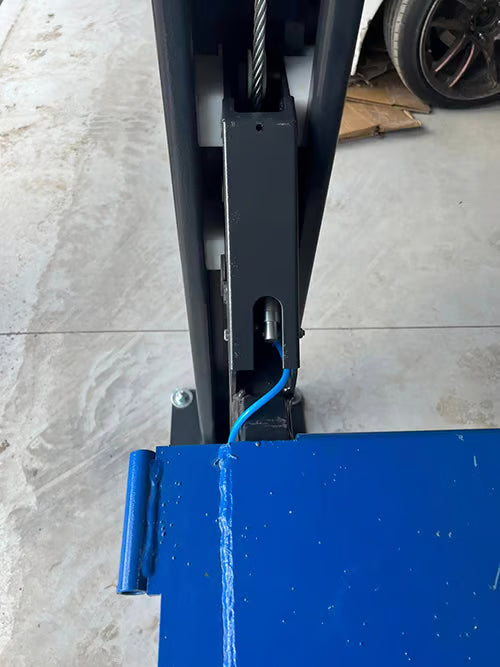

  • Secondary Safety Lock Mechanism engages when cable tension is removed.
  • Heavy-Duty Steel Build with 6mm cross beams, 5mm runways, and 10mm equalising cables.
  • Hydraulic Anti-Surge Valve provides additional safety protection during operation.
  • Registered with WorkSafe and has an Australian Engineering Certificate

Optional Accessories

  • Rolling Secondary Jack available for wheel, brake, and suspension work.
  • Jacking Plate Option for additional lifting support points.
  • Caster Wheel Kit allows repositioning within the workshop.
  • Wheel Alignment Kit Available for workshop applications.
  • Oil Drip Trays recommended when storing vehicles above others.

Why Buy From Crafted Garage Solutions?

We specialise in premium garage equipment and understand the planning that goes into installing a hoist properly. With 15 years in the mechanical industry, we understand the requirements for quality gear in your space. We can help you choose the right model for your needs, advise on installation requirements, and connect you with trusted installers where needed.

Our goal isn’t just to sell equipment - it’s to help you create a functional, safe, and professional garage setup with ongoing support.

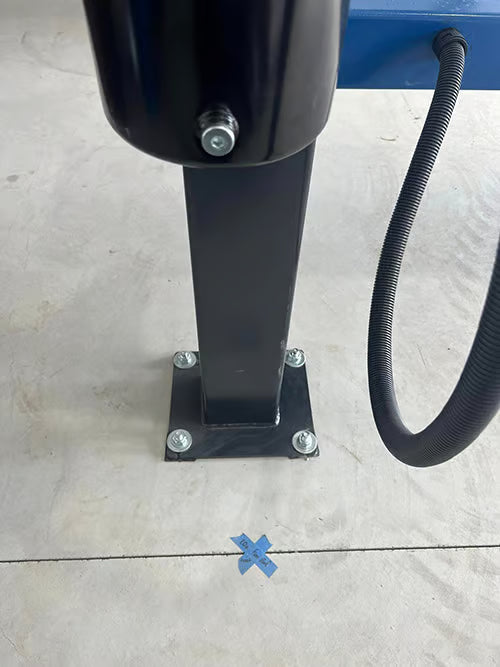

  • Minimum Concrete Thickness – 125mm (32MPa)
  • Minimum Ceiling Height – 3.5m

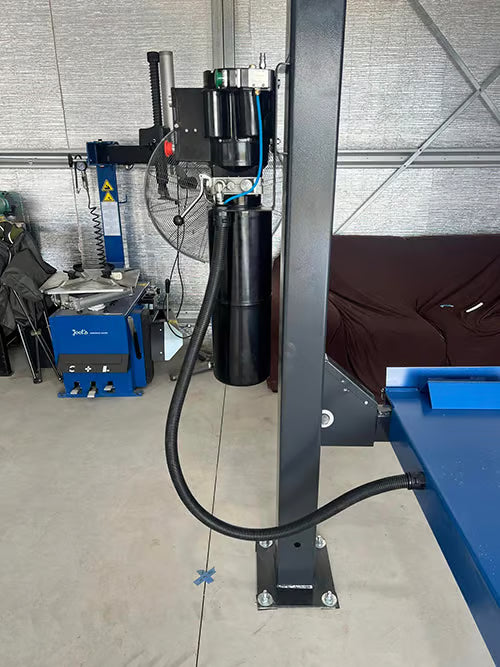

  • Motor – 240V single phase (15amp plug)

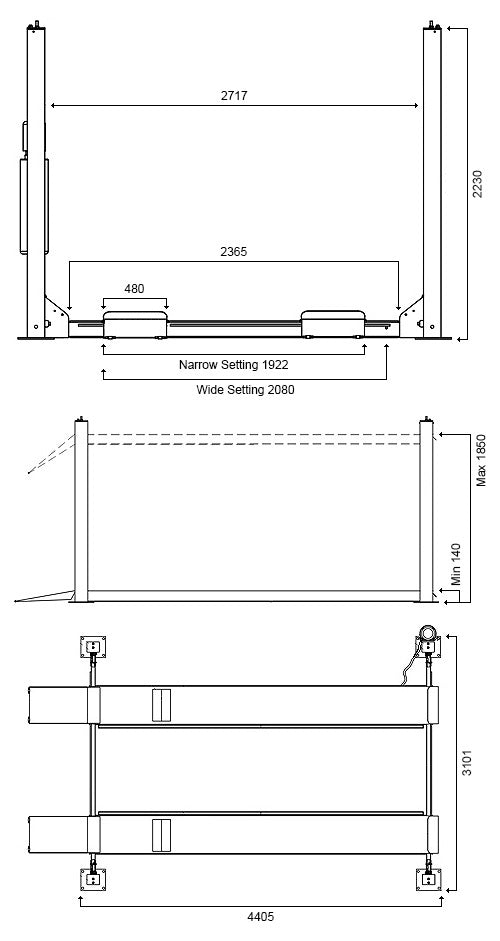

  • Clearance between posts – 2715mm
  • Overall height – 2230mm
  • Overall width (Including pump) – 3300mm
  • Overall length with ramps down – 5165mm
  • Overall length without ramps down – 4405mm
  • Max table height – 1850mm
  • Table length – 4055mm
  • Each table width – 480mm
  • Net weight / Gross weight – 770kg / 785kg

Material Thickness

  • Cables – 10mm
  • Cross Beams – 6mm
  • Runways – 5mm
  • Columns – 4mm

We know you’ve got enough to organise when upgrading your garage or workshop, so we keep delivery simple.

FREE metro delivery is included (excluding Darwin and Hobart). Checkout our Shipping Policy for more details or feel free to Contact Us before ordering.

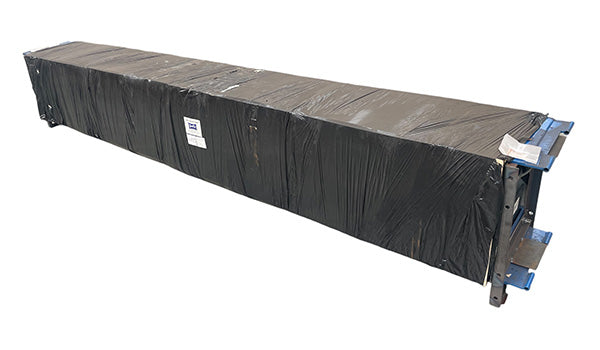

Depot delivery for heavy equipment: Due to the size and weight of car hoists and some larger workshop equipment, delivery is made to your nearest freight depot. A forklift is required for unloading, so residential delivery may not always be possible.

Find your nearest depot location HERE

If you have forklift access at your business or workshop, we can often arrange direct delivery, just contact us for a quote first.

We aim to dispatch promptly, with most deliveries arriving within 10 business days depending on location and supplier availability.

If you have any questions about delivery, installation or access requirements, our team is always happy to help.

The Installation Guide / Owners Manual can be found HERE

Frequently Asked Questions

Choosing the correct vehicle hoist for your particular application is dependent on a few different factors.

  • The ceiling height in your garage, shed or workshop
  • The concrete depth and suitability within your work area
  • The type of vehicles you will be placing on the hoist
  • The type of mechanical work you will be carrying out

4 post hoists are generally better as a vehicle storage solution whilst 2 post hoists offer better access to work on suspension and drive-train components.

Our scissor lifts are also a great solution for work spaces with low ceilings.

Our 2 post hoists and 4 post hoist models each have their own concrete requirements as recommended by the manufacturer. Please check their individual specifications.

You can check if the depth of your existing concrete is suitable by drilling into a discreet area of the slab in your workshop.

All of the vehicle hoists we sell operate on standard 240v single phase power.

You will however need a qualified electrician to wire up the connection to a 20amp circuit breaker.

We always recommend the use of ISO 46 hydraulic oil for trouble free operation.

Refer to the individual specs of the hoist you've purchased - volumes range from 8-12L

When you purchase a car hoist from us you can guarantee that you are investing in a quality product with the support to match it.

Our Hoists come with 3 years warranty* for complete peace of mind.

*3 years parts only warranty on all car hoists. Warranty claims do not cover incorrect use or installation.
